NSSRP - 24" Slab Roller Package

North Star Slab Rollers

All North Star slab rollers have two rolls, much like the wringer of an old-fashioned washing machine.  Both rolls have a small diamond pattern ("knurling") machined directly into the metal to grip the canvas.  The bottom roll is turned by the handle, but cannot move vertically.  As it turns, it drives the top roll through a train of gears.  The upper roll both turns and can be adjusted up and down.  The two rolls turning together pull slabs through easily, and the vertical adjustment of the top roll gives an easy-to-set and infinitely adjustable thickness from paper-thin to over 2 inches.  A reference scale allows setting and repeating openings to within 1/100 of an inch.

♦

The design gives great flexibility in making slabs.  Very thin, translucent porcelain slabs and thick, heavily textured architectural slabs are equally easy.  A wide variety of other texturing materials and objects can be passed through the machine along with the clay. Slabs can be rolled either direction or reversed on all North Star machines.

♦

Bodies and rolls are made of cast and carefully machined high-strength special alloy aluminum. Gears are made of the strongest material available for this application, nylon or steel. Bushings are nylon and the remaining parts (except plastic gear covers and knobs) are machined steel. Table frames are 14-gauge steel. Tabletops are of moisture-resistant medex with a melamine surface. Metal surfaces are zinc plated or coated with a durable powder coat finish. Virtually no maintenance is required, and the simplicity of the design ensures that any repair ever needed will be quick and easy.

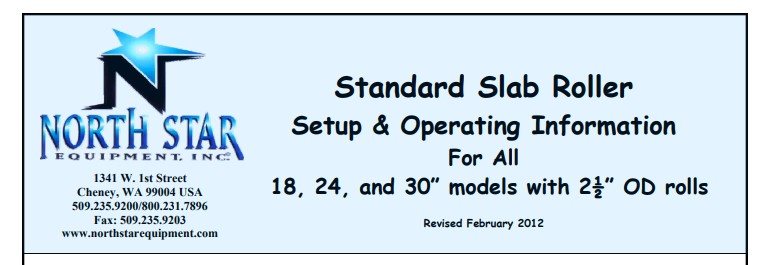

Click Above for PDF
