TM363 - Talisman w/ Sieve, (*specify mesh needed in order notes*)

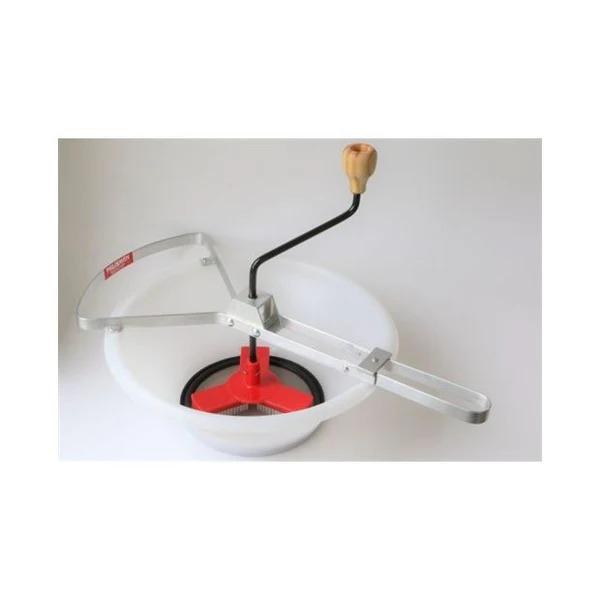

Talisman Spinning Rotary Sieve

The Rotary Sieve has a tapered, plastic body which fits firmly on any round container. Handle extension allows it to rest on extra large containers.

Push-in screens with moulded rubber rims are interchangeable. Stainless steel screens available in the following meshes:60#, 80#, 100#.

Either wet or dry materials can be sieved quickly. For example, dry ash can be put through a screen as fine as 100 mesh.

The brush-cluster is rotated against the screen by turning the handle and the pressure required is regulated simply by pressing on the handle as it is turned.

Brushes are held in a moulded plastic centre-piece sufficiently tightly to ensure that they maintain contact with the screen even if this distorts with use.

Brushes have nylon bristles set in a plastic back; they won't absorb colour and are easily washed. They are long-lasting, yet easily replaced.

After use, the screen can be removed and the brush-cluster pushed through the bottom of the sieve for easy washing.

The handle is easily removed for easier transport, or if several brush-heads are needed for different purposes - eg, for wet or dry uses.

The handle runs in a graphite-impregnated nylon bearing well clear of the abrasive materials being use

♦

Specifications

Materials

Bowl - white polyethylene plastic
Brushes - red plastic with nylon bristles
Crank handle - black powder coated steel with wooden knob
Frame - aluminium
Screens - rubber lip with stainless steel mesh

Size

Diameter across top - 41 cm (16 1/4")
Diameter across bottom - 22 cm (8 1/2")
Depth - 15 cm (6")
