BL - Plunger/Block Assembly
Item#: BL
MPN: 0122

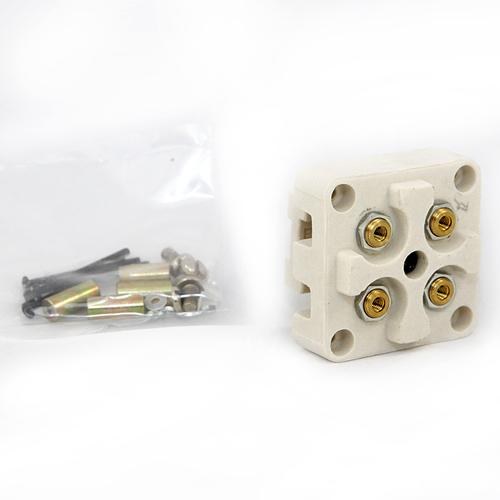

- Skutt Switch Block with Contact and Plunger
Replacing Switches - PDF
PDF - Replacing 3-Heat Switches in KilnSitter Kilns
These instructions walk you through the process of replacing 3 Heat switches in KilnSitter Kilns. All KilnSitter models use 3-Heat switches except for models 818, 818P, 183, 185, and 614 which use an Infinite Switch. These instructions are for installing the old style 3 heat switch which is no longer available.
♦
PDF - Replacing Infinite Switches in KilnSitter Kilns
These instructions are for replacing Infinite switches in KilnSitter models 818, 818P, 183, 185 and 614. The 614 models use a 120V Infinite Switch as opposed to the 240V Infinite Switch.
♦
PDF - New Style 3-Heat Switch Conversion Instructions
These instructions are for installing the new style 3-Heat switches on kilns manufactured prior to November 6th, 2018. The connections on the new switch are different so it will involve installing new connectors on your wires.
