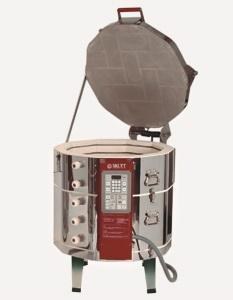

KM1022 - KilnMaster 240v 1ph
Item#: KM102240
SKU#: 2884
* Fits most small studios.
* Easy to load for those who are vertically challenged.
* Has all the bells and whistles of the larger kilns in a more compact size
Sophisticated, Yet Easy to Use
- Write your own firing programs with up to 32 Segments using Ramp and Hold. Now you can store up to 12 programs.
- … or use the tried and true factory set programs in ConeFire Mode
- Built in Diagnostics give you or our technicians the ability to diagnose kiln problems with just a few button presses.
- New Safety Features help prevent accidental starts and overfires.
- New software keeps track of your Firing Costs and the Number of Firings
- Fuse Glass, Slow cool Cone 6 Glazes, Grow Crystals…whatever you want to program this controller can handle.
Current Sensing Technology
Skutt is one of the few brands that installs a Current Sensor in every KilnMaster Kiln. This allows you to read the Amperage of each section of the kiln as well as the Voltage and Voltage Under Load.
Now with the touch of a few buttons you can give those readings over the phone to your kiln repair technician so they can troubleshoot the problem and make sure they have the correct parts when they come out for the repair. This Saves Time and Money.
Prior to the use of these current sensors someone would have to come to your house and test the amperage and voltage inside the control box with live wires exposed. This system is Much Safer.
Sectional Design
Sectional Design is a good idea on so many levels.
Moving
Imagine trying to move a kiln into the basement or through a narrow door without being able to break it down into sections.
Repair
No more standing on your head in the kiln to replace those bottom elements or removing every brick in the kiln to get to the one you want to replace. Just remove the control box, unhook the buckles and place the section you want to work on on a table.
Replacement
We hope nothing really bad happens to your kiln … but … if it does, isn’t nice to know you can replace one bad section instead of the whole kiln?
Balanced Elements
A large amount of the heat you lose in your kiln passes to through the lid and slab of your kiln. To compensate for this, Skutt directs more heat to these areas when they design the elements. The fact that we have twice the element grooves in our kilns gives us more design flexibility than some of our competitors.
It also gives you more loading options since it is always recommended to have at least one element radiating between each layer of shelves. Oh and by the way, twice the grooves means you get twice the amount of element wire, which means each element doesn’t have to work as hard, which means longer element life! Whew!
The Thermocouple
- Exposed Thermocouple equals faster reaction time and higher accuracy.
- Inexpensive, plus we give you an extra one when you buy your kiln.
- Easy and quick to replace.
- Type S (Platinum) Upgrades Available.
The Warranty
- Unlike most warranties, ours covers Parts AND Labor.
- Never Pro-Rated.
- Serviced by the most extensive, knowledgeable and talented distributor network in the industry.
- Backed by a company whose mission statement is “We help you make great things”. When your kiln is down, you can’t make great things.
The Lid Lifter
- Standard on all 10 and 12 sided ceramic kilns
- Lift 100lbs with ease!
- All stainless construction.
- Easy and safe to tension.
| Model | Phase | Volts | Amps | Watts | Temp (F) | Cubic Ft | Opening (in) | Depth (in) | NEMA Receptacle | Ship Dims. (in) | *Ship Wt. (lbs) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| KM-1022 | 1 | 240 | 48 | 11520 | Cone 10, 2350 F | 5.7 | 23.00 x 23.00 | 22 | 6-50 | 37 x 40 x 41 | 240 | |
| KM-1022 | 1 | 208 | 48 | 9984 | Cone 10, 2350 F | 5.7 | 23.00 x 23.00 | 22 | 6-50 | 37 x 40 x 41 | 240 | |
| KM-1022 | 3 | 240 | 34.6 | 11520 | Cone 10, 2350 F | 5.7 | 23.00 x 23.00 | 22 | 15-50 | 37 x 40 x 41 | 240 | |
| KM-1022 | 3 | 208 | 34.6 | 9984 | Cone 10, 2350 F | 5.7 | 23.00 x 23.00 | 22 | 15-50 | 37 x 40 x 41 | 240 | |
*Weights listed are only approximations. Actual weight will vary due to humidity levels and varying brick density.
Chamber Capacity
The picture above displays a
KM-1027 kiln
| Depth | Opening Width | Opening Length | Cu. ft. | Tea Bowls |
|---|---|---|---|---|
| 22 in | 23 in | 23 in | 5.7 | 32 |
Approximately 23 in. x 23 in. opening and 22 in. high: 5.7 cubic feet, 32 bowls.
Bowl, 6 inches in diameter and 3 inches high.
Contents List
Skutt Kilns should arrive fully assembled.
Packed with the kiln you will find the following items:
- Kiln Stand
- Instructional Video
- Stand Feet
- Extra Thermocouple (unless Type S)
- Peep Plugs – attached to the kiln stand, enough to fill each peephole on your particular model.
